Oxygen Feed Ozone Generator

ozone-generator-l-series-product-image1
ozone-generator-l-series-product-image2
ozone-generator-l-series-product-image3
ozone-generator-l-series-product-image4
ozone-generator-l-series-product-image5

L-series

L10G, L20G, L30G, L40G, L50G, L60G, L100G and L200G

The State of the Art L-Series High frequency CD Technology ozone generators are designed for high performance at low cost. Our L-Series works from external oxygen or dry air as feed gas to produce ozone gas. This series is designed for continuous running and maintenance free operation.

Our L-Series has a wide range of models from 10 g/h to 200 g/h. It has very good life on ozone cells compared with Air Feed Ozone Generators because of moisture free dry oxygen. We also supply suitable high purity Industrial Oxygen concentrators needed for the L-Series. It is built on GRP enclosure for L10G to L60G and Mild Steel powder coated enclosure for L100G to L200G that is rugged, weather proof and static electricity safe.

  • Compact and Wall mountable
  • High voltage and High frequency corona discharge
  • Long life stainless steel ozone electrodes
  • Ozone Status lamp, Oxygen flow meter
  • Over current, Over temperature Protection
  • Lowest power consumption in its class
  • Air cooled electrodes
  • Over current, over temperature protection
  • Optional 4-20 mA / 0-5 V analog interface
  • Variable ozone output (0-100%)
Models Ozone Capacity Max. Concentration Feed gas flow Electrical Rating Dimension Weight Submit Enquiry

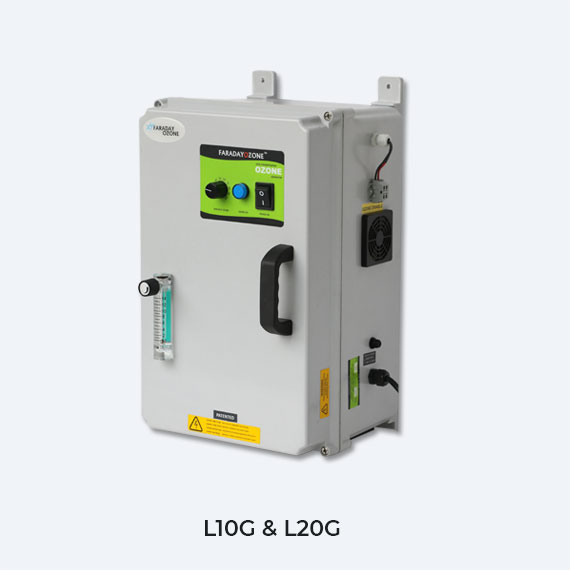

L10G 10 gm/hr 6 - 8% weight 3 - 5 lpm 230 V, 50 Hz, 80 W 270 x 210 x 420 in mm 10 kgs
L20G 20 gm/hr 6 - 8% weight 3 - 5 lpm 230 V, 50 Hz, 120 W 270 x 210 x 420 in mm 10 kgs

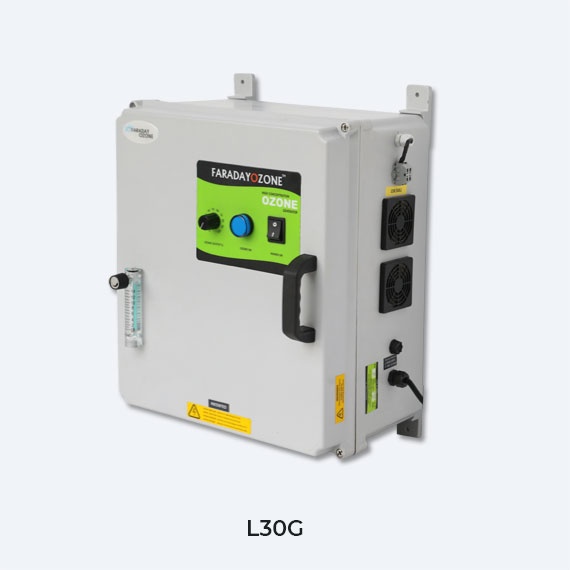

L30G 30 gm/hr 6 - 8% weight 3 - 5 lpm 230 V, 50 Hz, 140 W 370 x 210 x 420 in mm 15 kgs

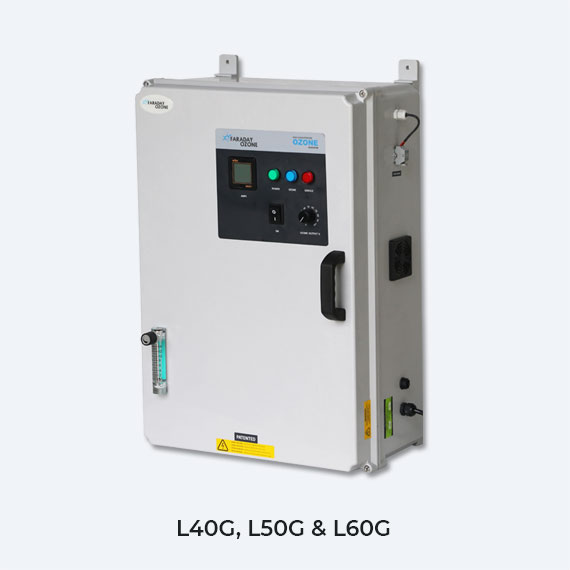

L40G 40 gm/hr 6 - 8% weight 3 - 5 lpm 230 V, 50 Hz, 200 W 420 x 210 x 600 in mm 17 kgs
L50G 50 gm/hr 6 - 8% weight 3 - 5 lpm 230 V, 50 Hz, 260 W 420 x 210 x 600 in mm 18 kgs
L60G 60 gm/hr 6 - 8% weight 3 - 5 lpm 230 V, 50 Hz, 300 W 420 x 210 x 600 in mm 18 kgs

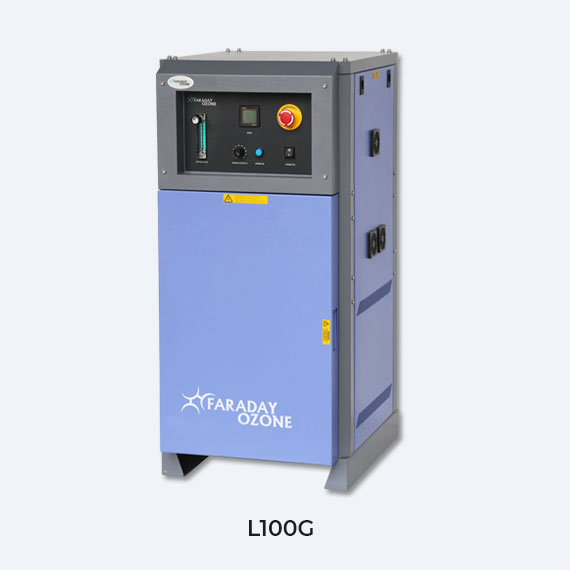

L100G 100 gm/hr 8 - 12% weight 10 - 15 lpm 230 V, 50 Hz, 600 W 457 x 490 x 1034 in mm 55 kgs
L200G 200 gm/hr 8 - 12% weight 20 - 30 lpm 230 V, 50 Hz, 1500 W 550 x 969 x 1350 in mm 140 kgs
